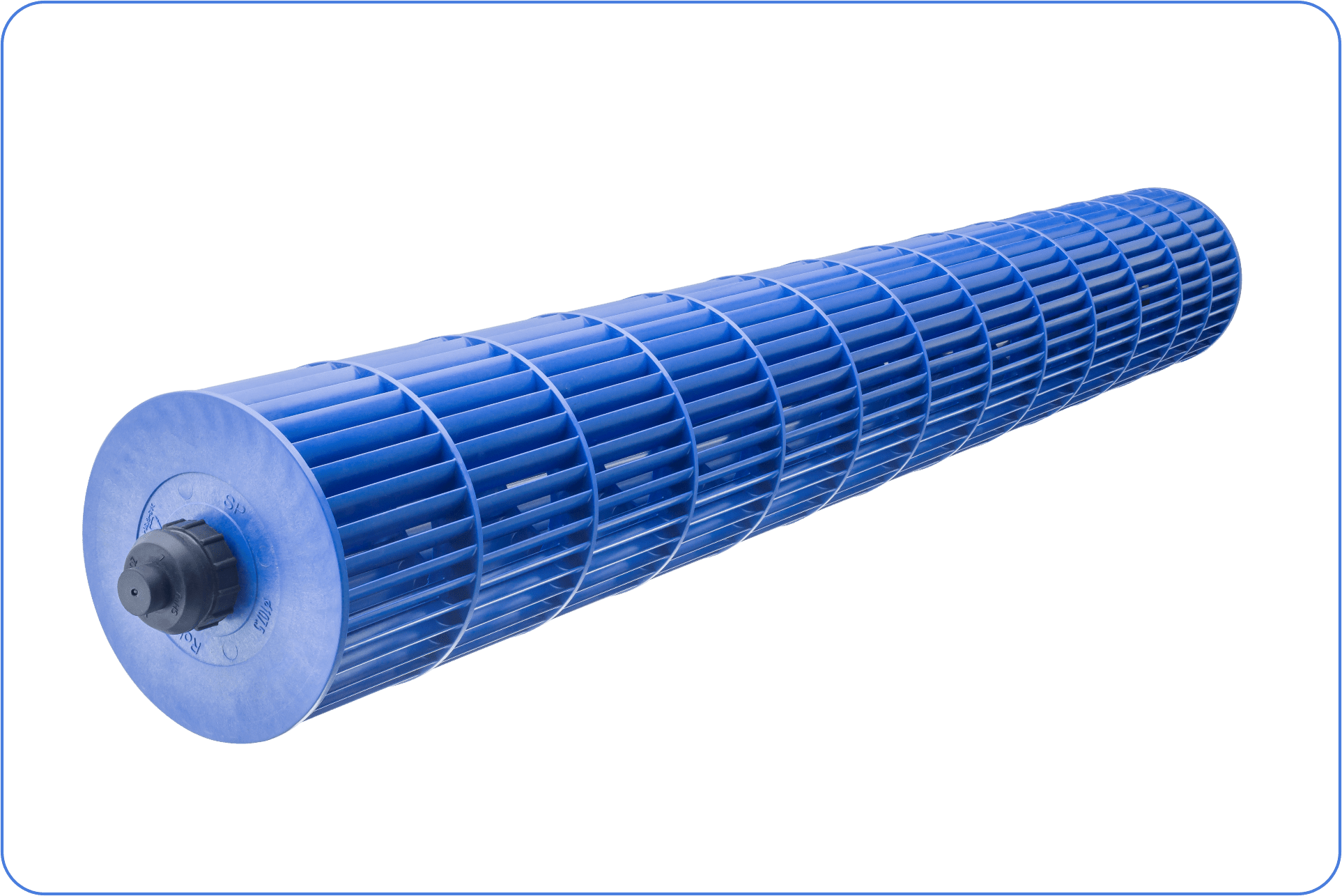

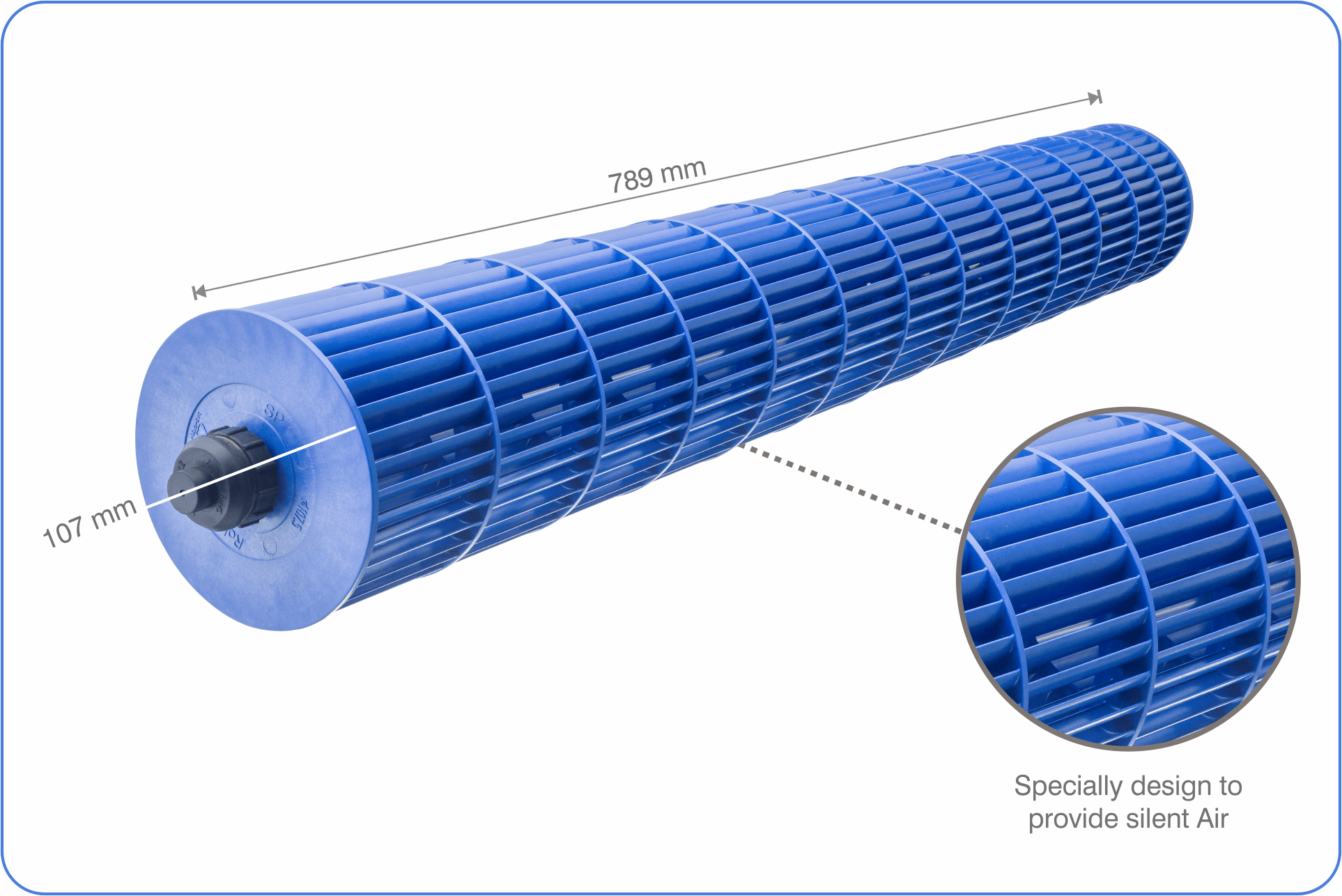

T-FLOW FAN
HOW DOSE IT WORK: Having maximum length to cover wide Air Flow and specially design to provide silent air, Specially design to provide silent Air
Air Conditioner Manufacturing
OEM Supply under Daitōryō Brand
Shreeji Plast undertakes OEM air conditioner manufacturing under the brand name Daitōryō, supplied to Akshar Home & Life Solutions. Our role focuses on manufacturing excellence, process discipline, and strict adherence to OEM specifications. Every unit is produced to meet defined performance, safety, and quality standards.
Our production facility is equipped with organized assembly line conveyor systems, quality checkpoints, and testing procedures to ensure consistency across all units. From component assembly to final inspection, each step follows a structured process to maintain reliability and efficiency.
Quality control is integrated throughout the manufacturing cycle. Our trained workforce ensures that every air conditioner unit meets functional requirements before dispatch. This disciplined OEM approach enables us to deliver dependable products while supporting brand integrity and long-term partnerships.
Air Conditioner Manufacturing

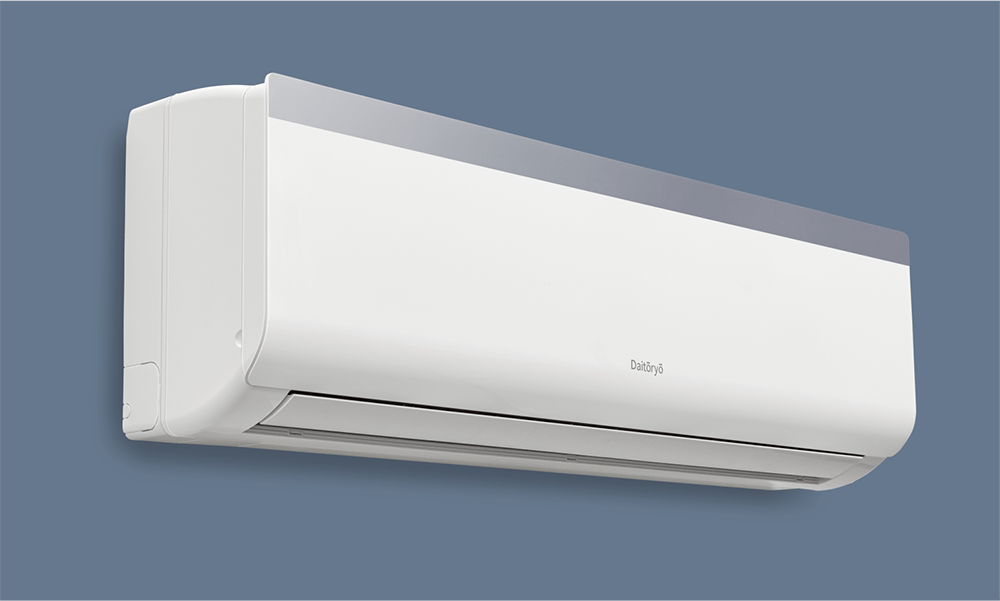

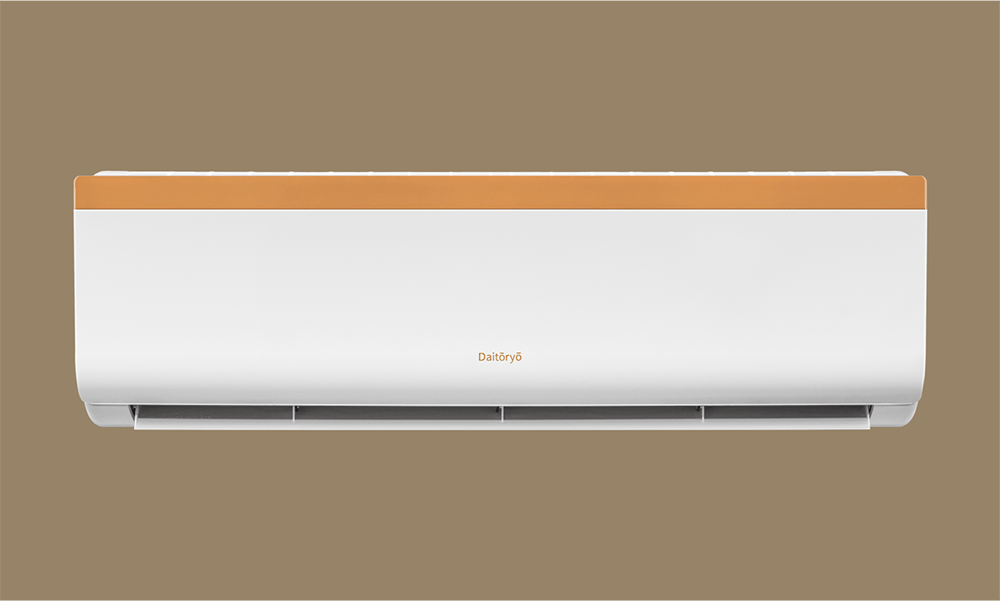

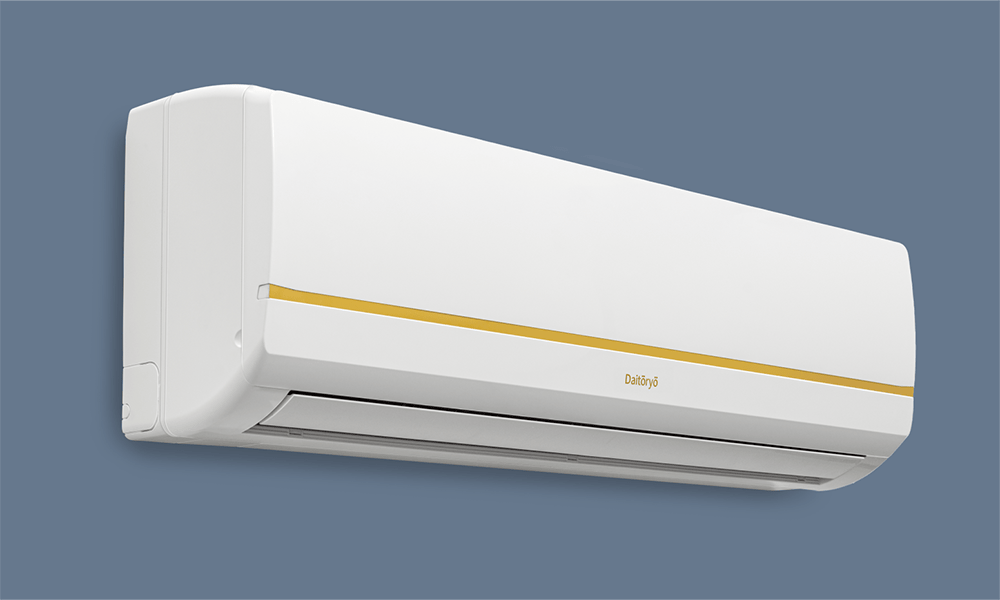

Expanded chassis of indoor unit increase air flow & heat transfer rate to offer you better comfort and cooling in wider range.
- Gives higher cooling capacity
- Remove humidity on higher rate and keep you refreshing
- Longer Heat exchanger helps to boost heat transfer from room
- Offers a wide air flow

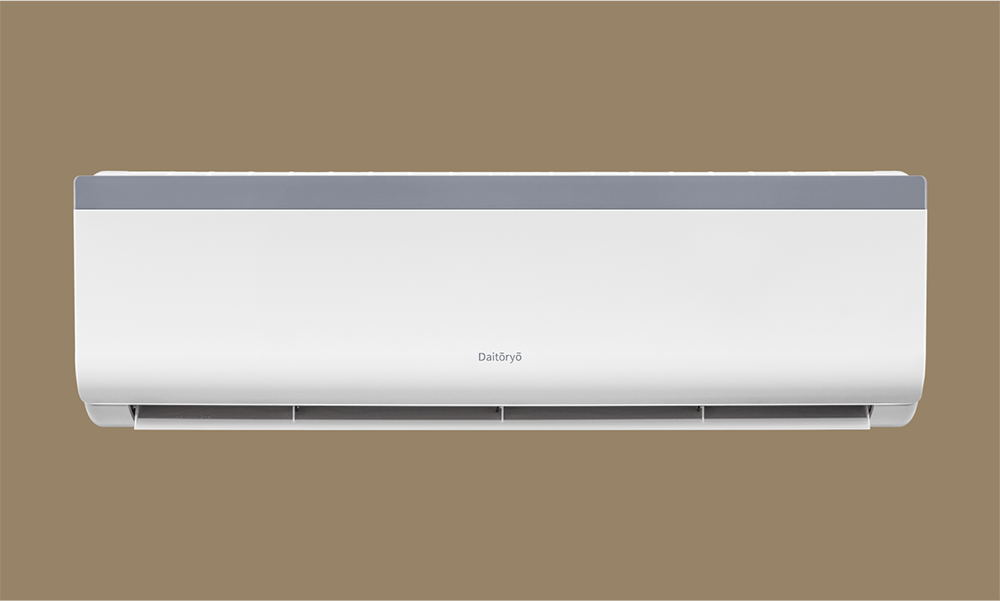

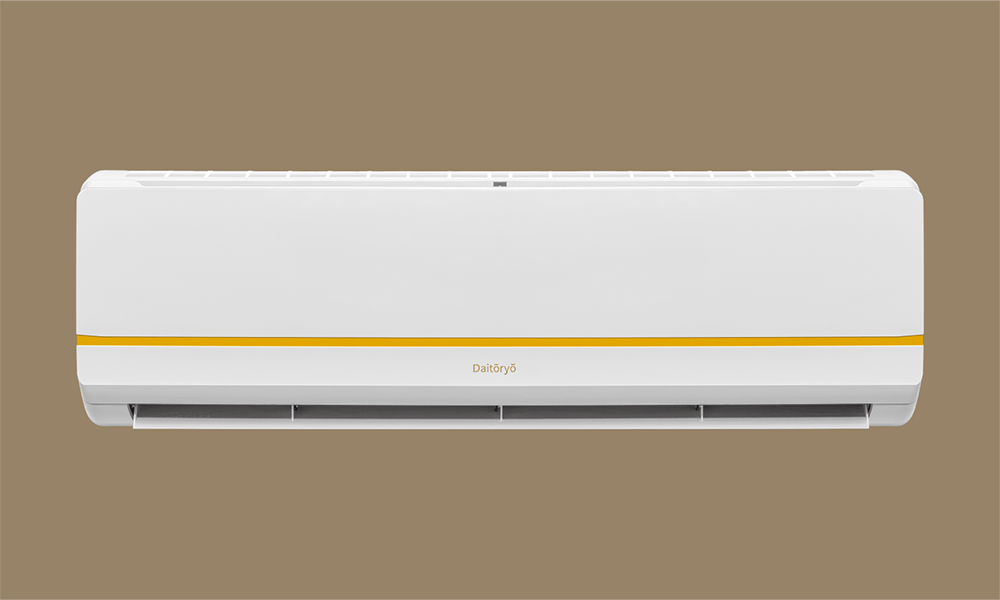

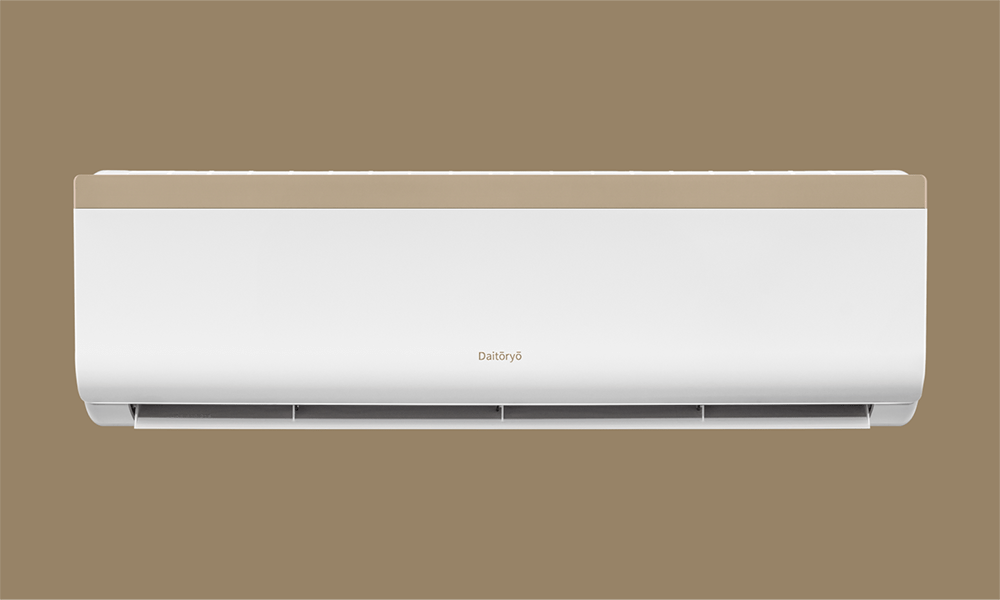

- Available in multiple design front panels of Decorative colours to let you select your choice fit with your Decor
- Wide range of product availability and art of state manufacturing facility to fulfill customer ever changing demand in affordable cost
- All models are available in 1 Ton, 1.5 Ton, 2 Ton
- Warranty: 1 YEAR ON CONTROLLER / PCB
- Warranty: 5 YEARS ON COMPRESSOR
| Technical Specification | |||||
|---|---|---|---|---|---|
| Model Name | UOM | NOVA001 | NOVA002 | NOVA004 | NOVA005 |
| Tonnage | Ton | 1.5 Ton | 1.5 Ton | 2.0 Ton | 1.5 Ton Invertor |
| Speed | Fixed /Variable | Fixed | Fixed | Fixed | Variable |
| Rated Power Supply | Volts | 230v, 50Hz, 1P | 230v, 50Hz, 1P | 230v, 50Hz, 1P | 230v, 50Hz, 1P |
| Std. Cooling at 100% Capacity | Watt | 4900 | 5000 | 6000 | 5000 |
| Std. Cooling at 50% Capacity | Watt | NA | NA | NA | 2500 |
| Power Input at 100% Capacity | Watt | 1400 | 1388 | 1764 | 1500 |
| Power Input at 50% Capacity | Watt | NA | NA | NA | 605 |
| Rated Current | Ampere | 6.3 | 6.3 | 7.7 | 6.6 |
| ISEER | - | 3.5 | 3.6 | 3.4 | 4.01 |
| IDU Dimensions L x W x H | mm | 1020 x 320 x 220 | 1020 x 320 x 220 | 1070 x 325 x 255 | 1020 x 320 x 220 |
| ODU Dimensions H x W x D | mm | 780 x 240 x 530 | 840 x 630 x 320 | 840 x 630 x 320 | 780 x 240 x 530 |
| Indoor Noise Level | dBA | 52 | 52 | 56 | 52 |
| Ambient Operating Temp. Range | °C | 35-46 | 35-46 | 35-46 | 35-46 |
| Refrigerant type | - | R32 | R32 | R32 | R32 |
| Evaporator & Condenser Coil Material | - | Copper and Aluminum | Copper and Aluminum | Copper and | Copper andAluminum |
| Star Rating | - | ⭐ ⭐ ✰ ✰ ✰ | ⭐ ⭐ ✰ ✰ ✰ | ⭐ ✰ ✰ ✰ ✰ | ⭐ ⭐ ⭐ ✰ ✰ |

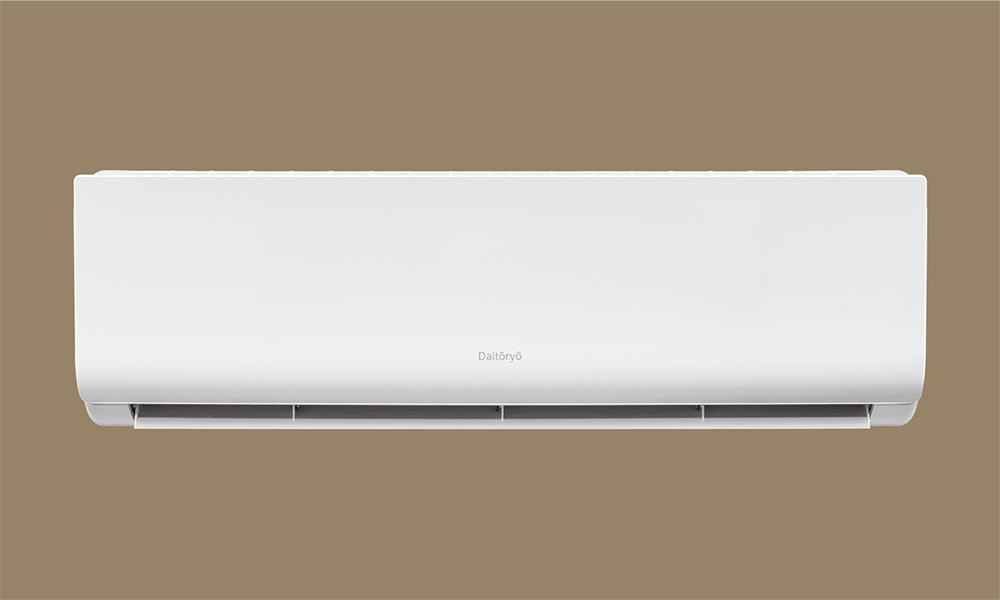

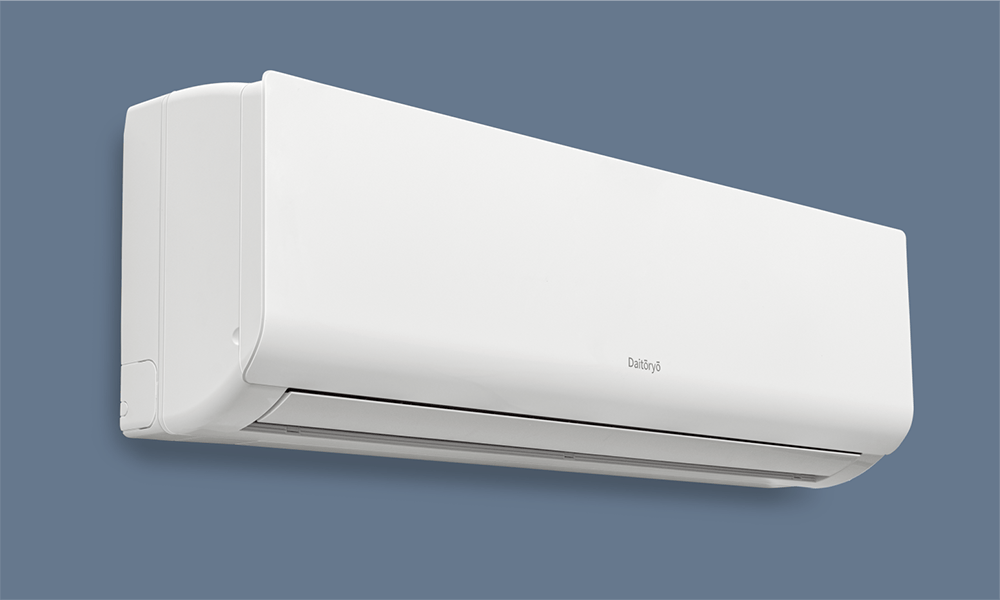

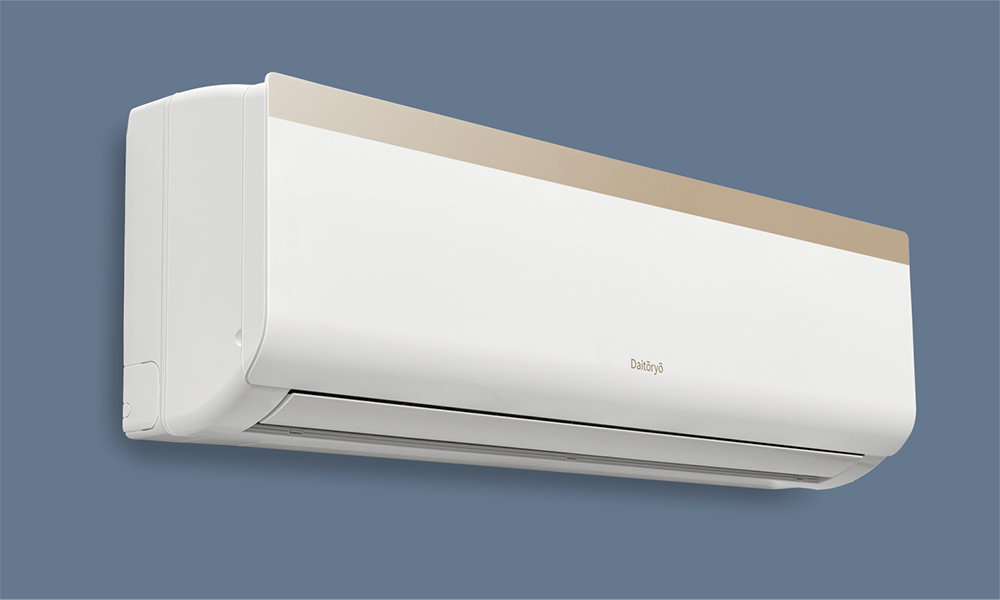

AC Model Name
AC Model Name
AC Model Name
AC Model Name
AC Model Name
Warranty
UV
Highly UP protected gives benefits for preventing yellowness.
High Quality Raw Material
High mechanical strength of raw material improves life of plastic parts and provides flexibility in handling.

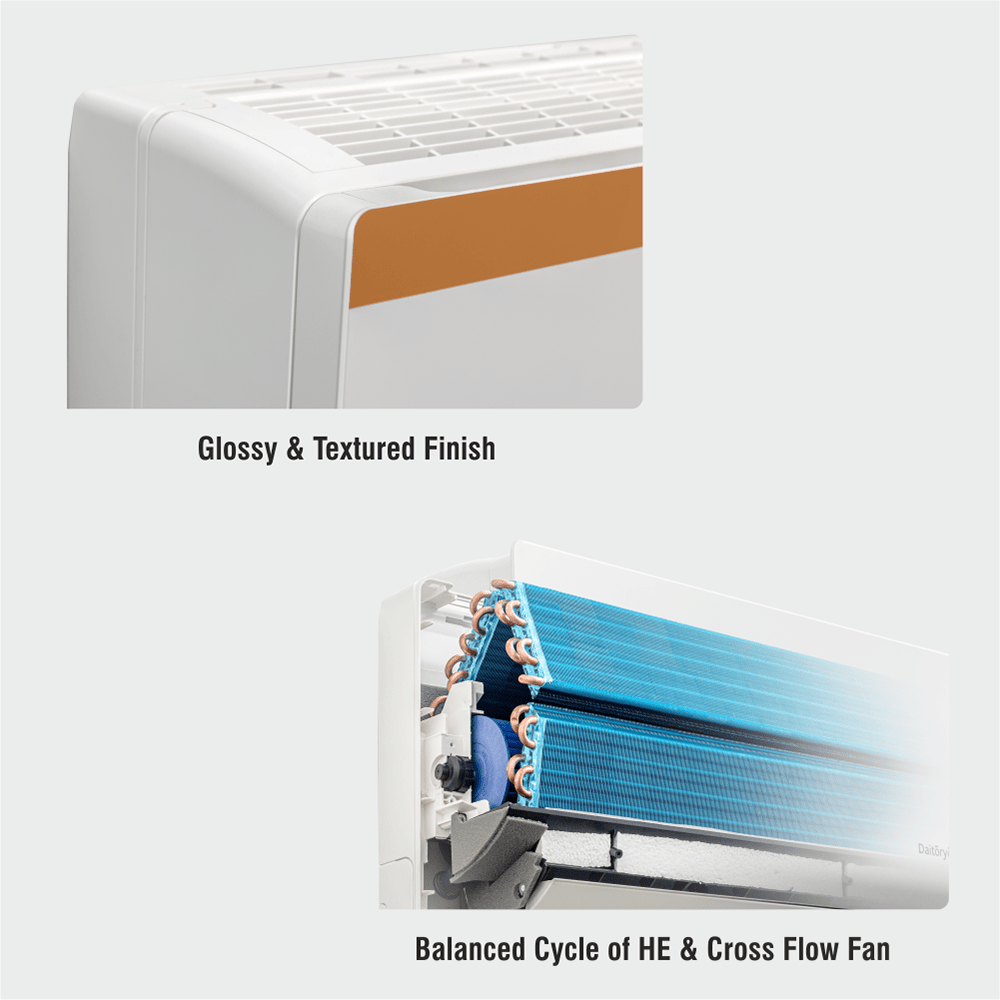

Glossy Finish
High glossiness facilitate easy cleaning and superior ambience to decor.
UL Cerfied
UL Certified Plastic Raw Material ensure high protection against flammability, hence fulfill all the compliance at home.

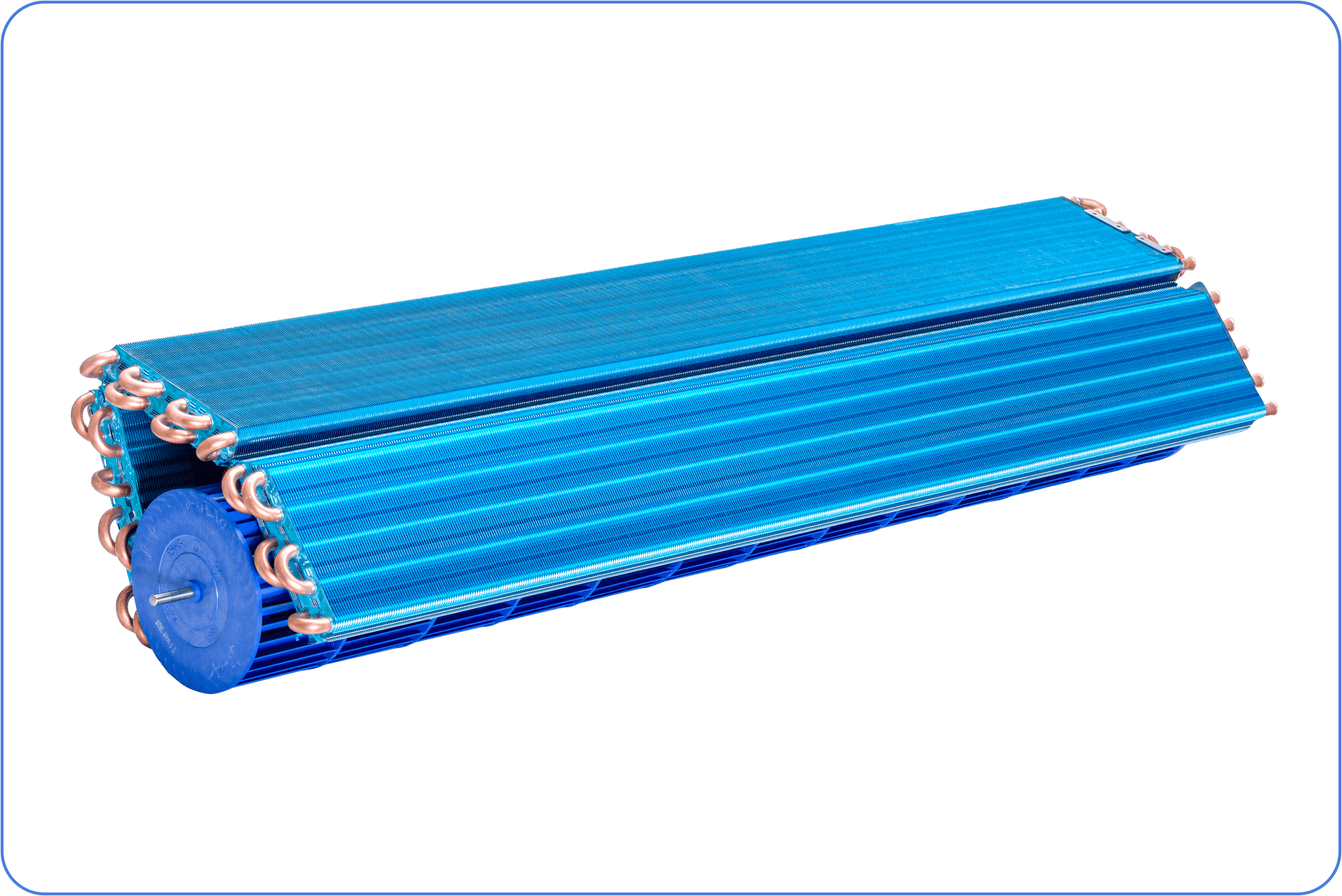

EVAPORATOR COIL
100% COPPER, WITH BLUE FIN COIL, 5 PASS EVAPORATOR COIL, Copper Thickness: 0.23 mm, Fin Per Inch (FPI): 20 FPI, Coil Length 5 & 6 Hole: 780 mm, 7 Hole: 750 mm, Pitch: 21 mm

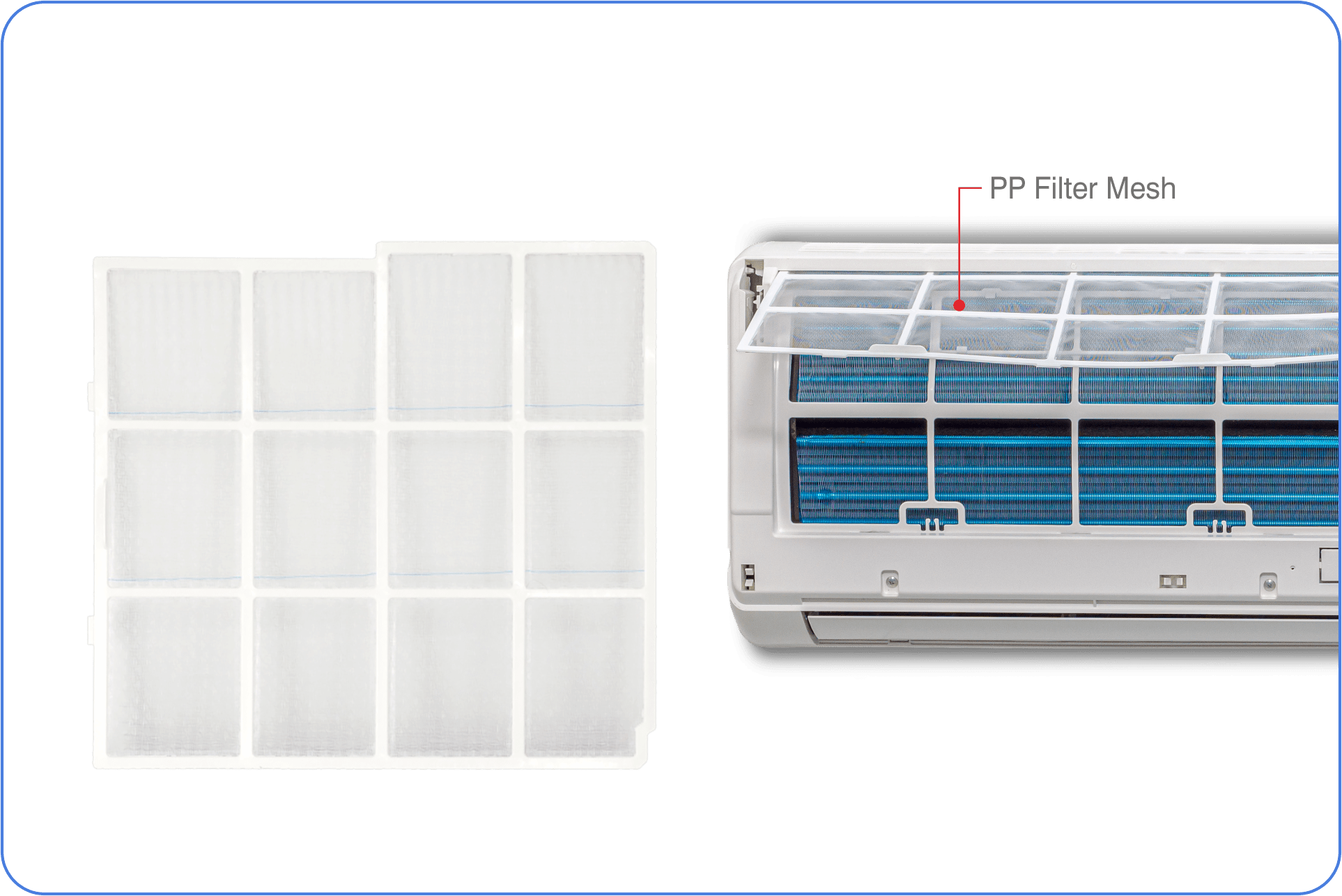

PP FILTER MESH
Open space area no more than 70% as well as designed according to BIS Standard

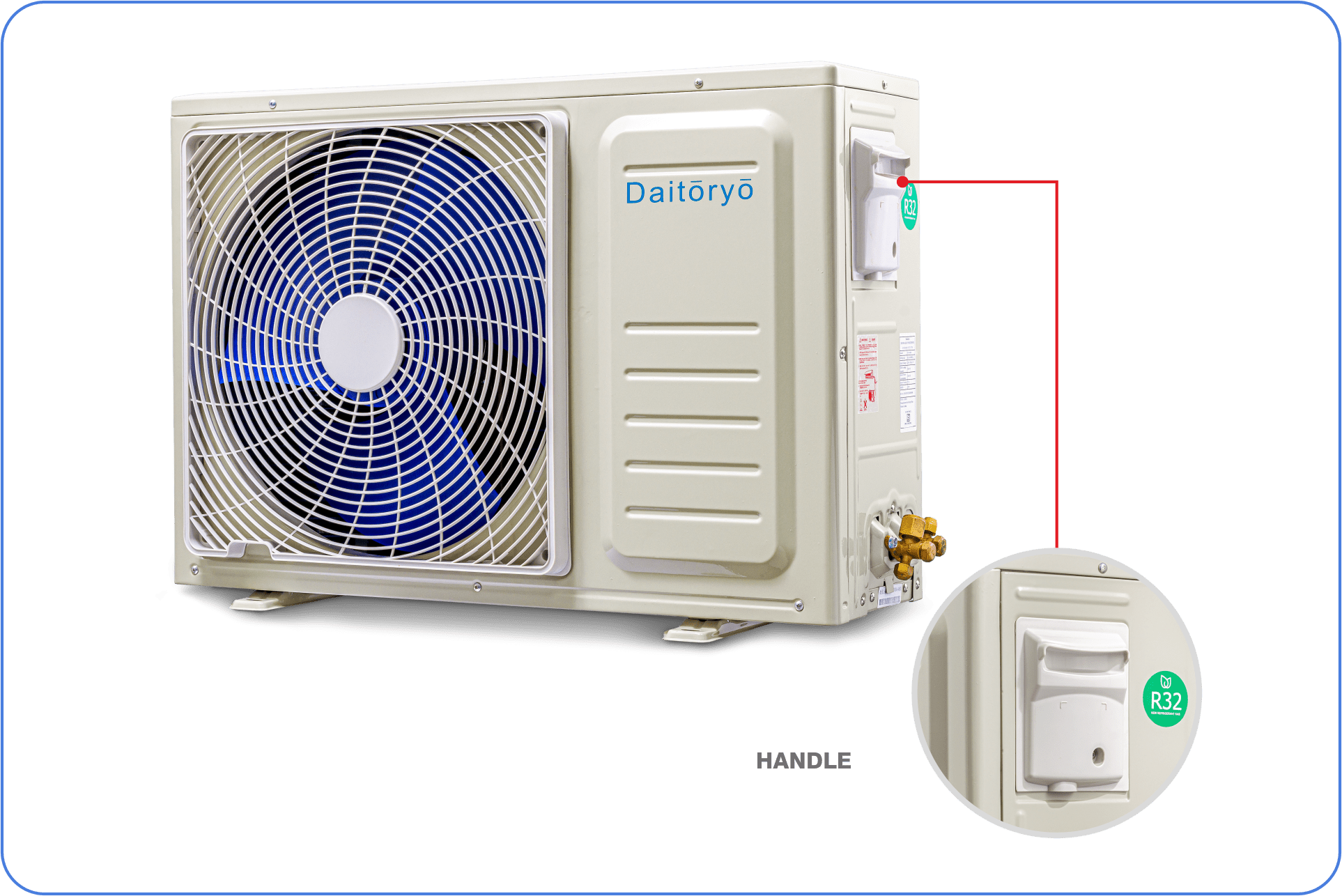

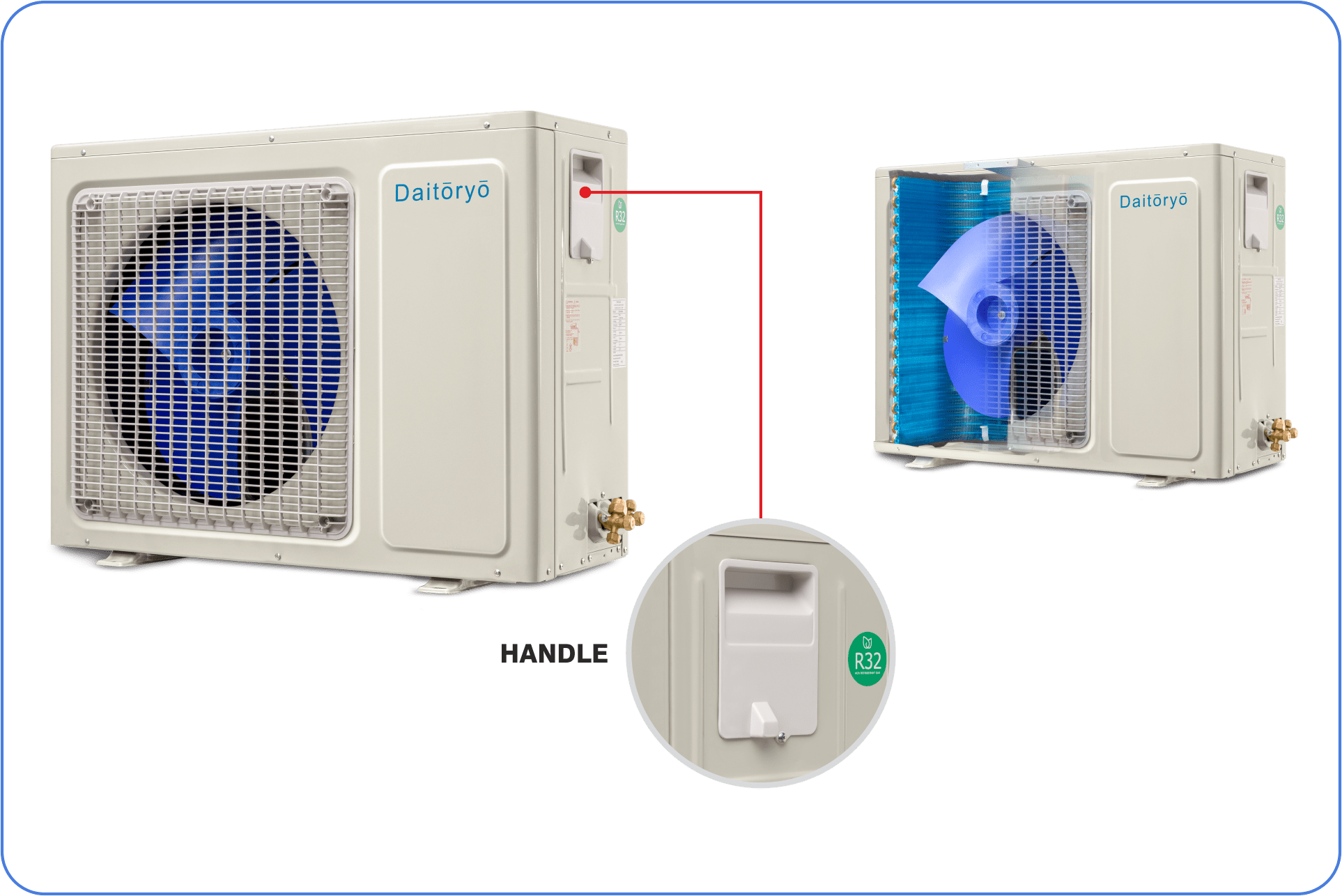

OUTDOOR UNIT
2 Ton
OUTDOOR UNIT
1.5 Ton

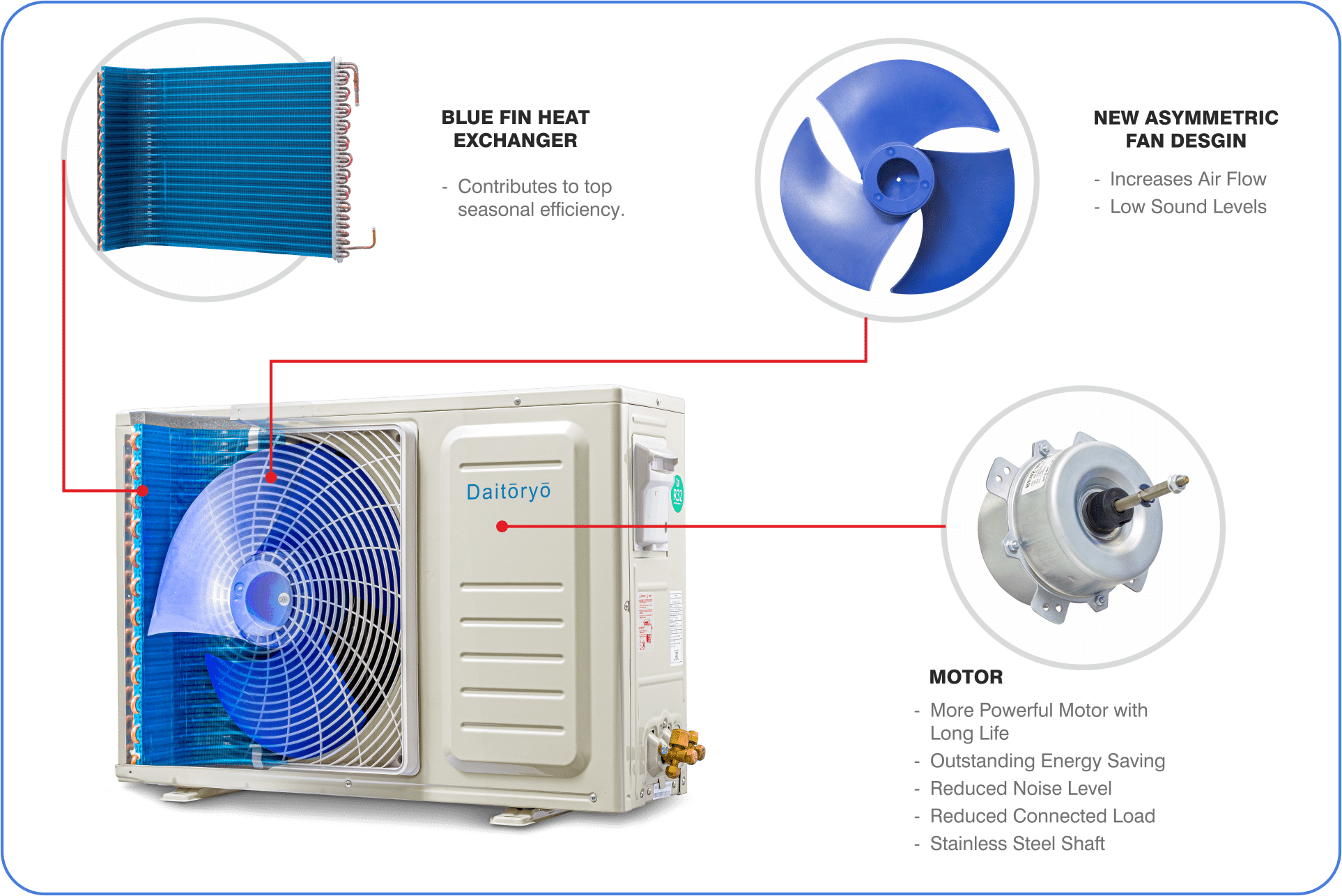

MOTOR | FAN DESIGN | HEAT EXCHANGER
Motor: More Powerful Motor with Long Life, Outstanding Energy Saving, Reduced Noise Level, Reduced Connected Load, Stainless Steel Shaft
NEW ASYMMETRIC FAN DESGIN: Increases Air Flow, Low Sound Levels
BLUE FIN HEAT EXCHANGER: Contributes to top seasonal efficiency.
NEW ASYMMETRIC FAN DESGIN: Increases Air Flow, Low Sound Levels
BLUE FIN HEAT EXCHANGER: Contributes to top seasonal efficiency.

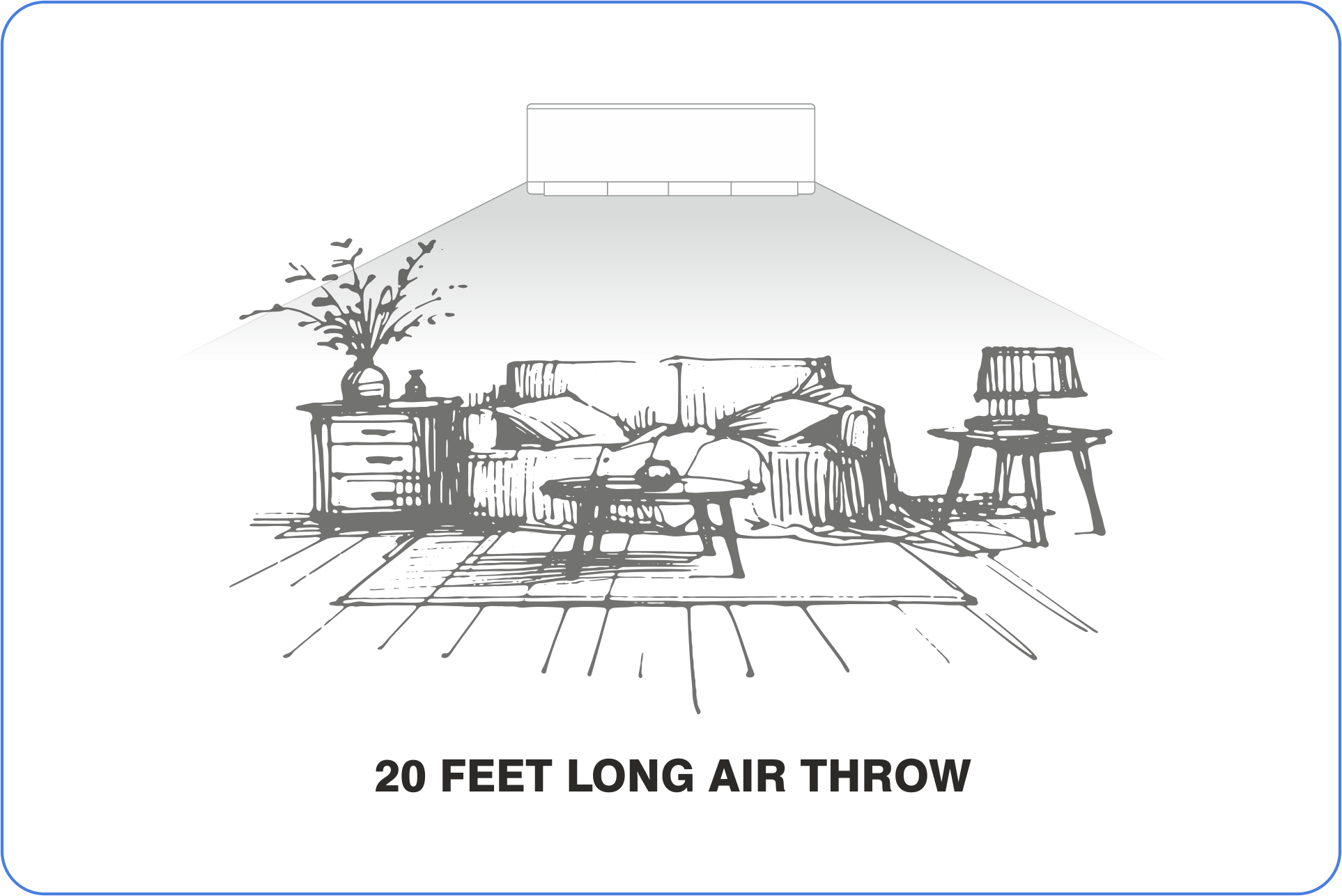

20 Feet
20 FEET LONG AIR THROW
SYSTEM FEATURES
Controller Start with Default memory in the Non-violate Memory Fail

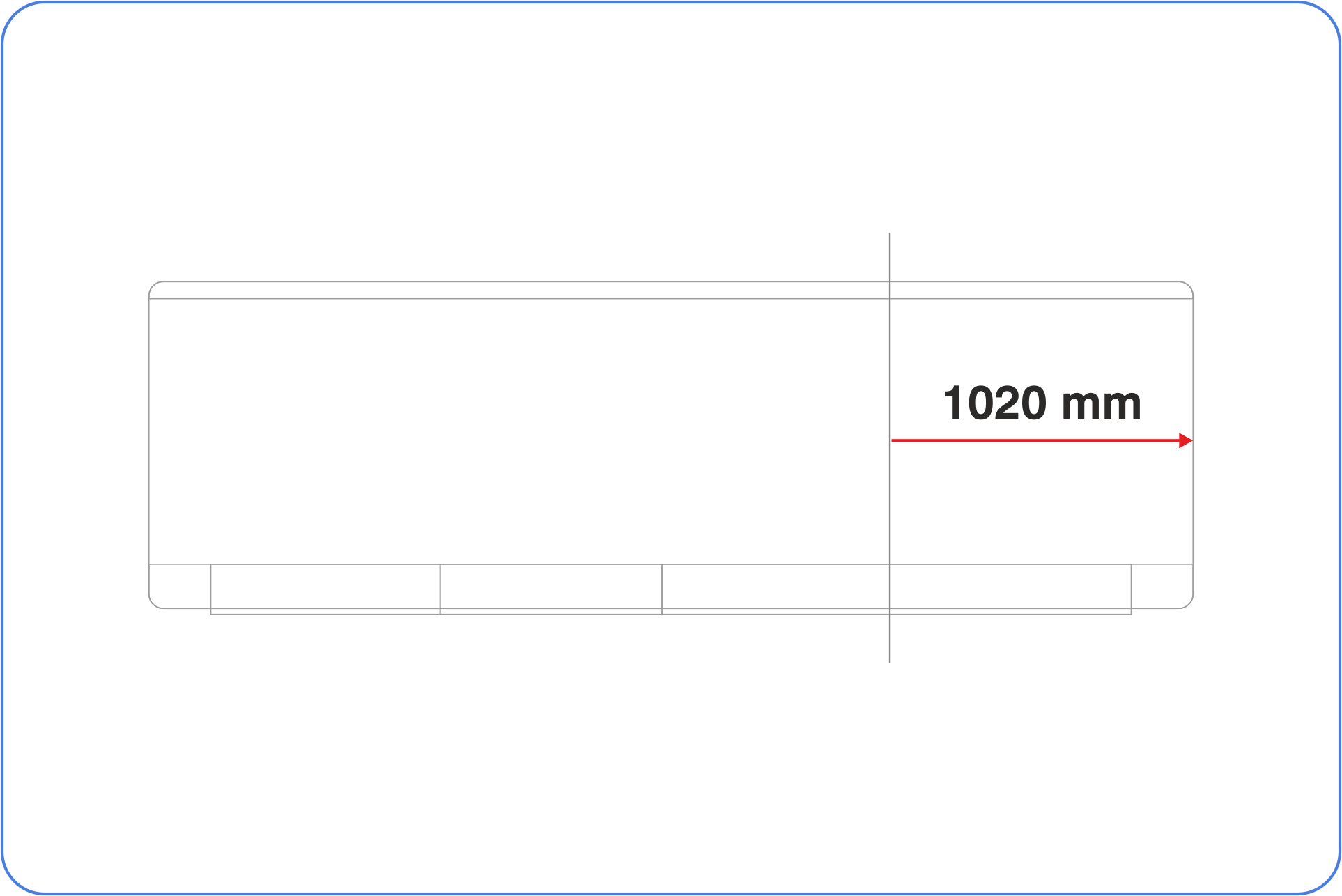

BIGGER INDOOR UNIT
Bigger Unit and Suction area. Better Draft for a Better Air Experience.
3 FAN SPEED
The motor in IDU enables 3 variable fan blower speed, with seamless transition between silent to high speeds, providing reduced nosie levels & more speed options.
100% COOLING CAPACITY EVEN AT 460C
Daitoryo AC's deliver 100%, Capacity 460C, Standard
Condition 350C

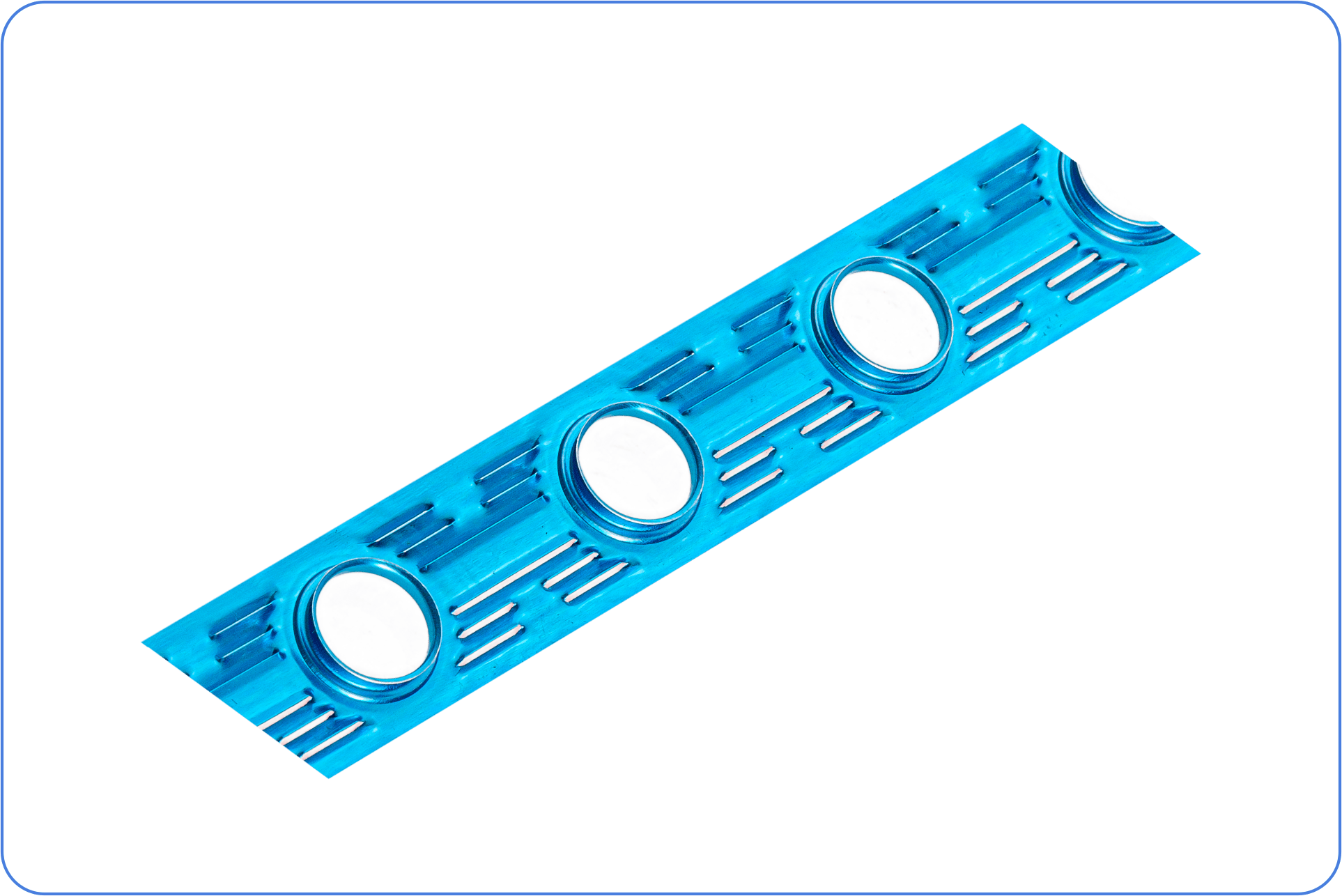

SUPER LOUVERS FINS
Super louvers fins of Daitoryo AC have multiple slits that provide more heat exchange area & cools the room faster.

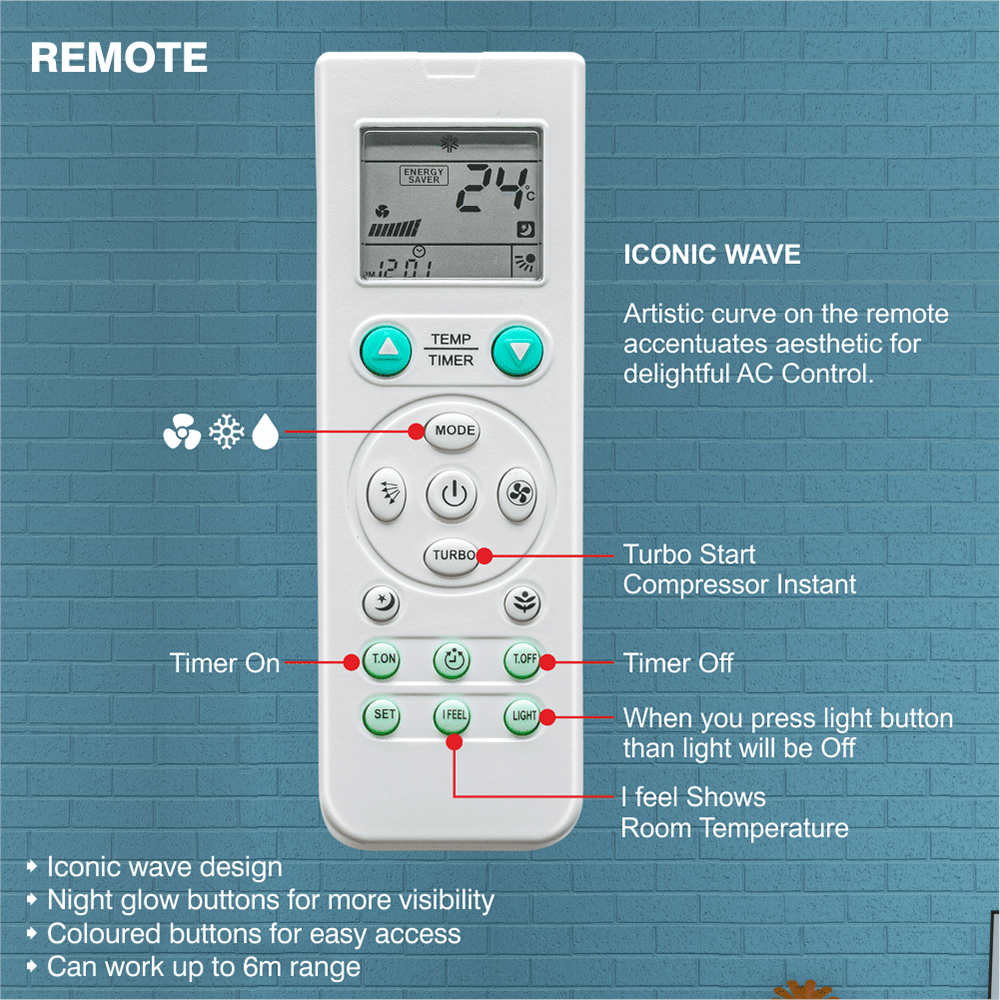

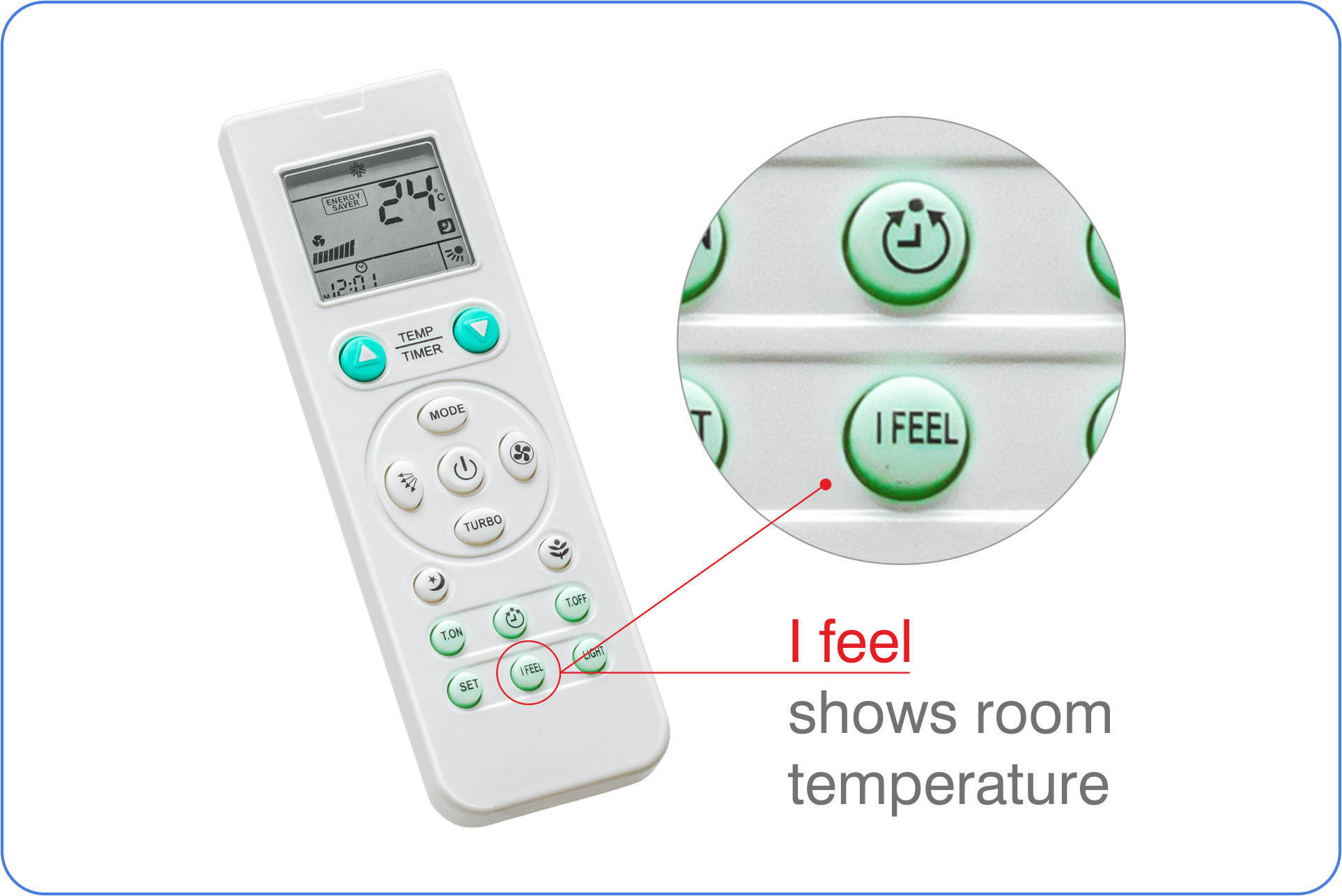

I FEEL
I feel shows room temperature

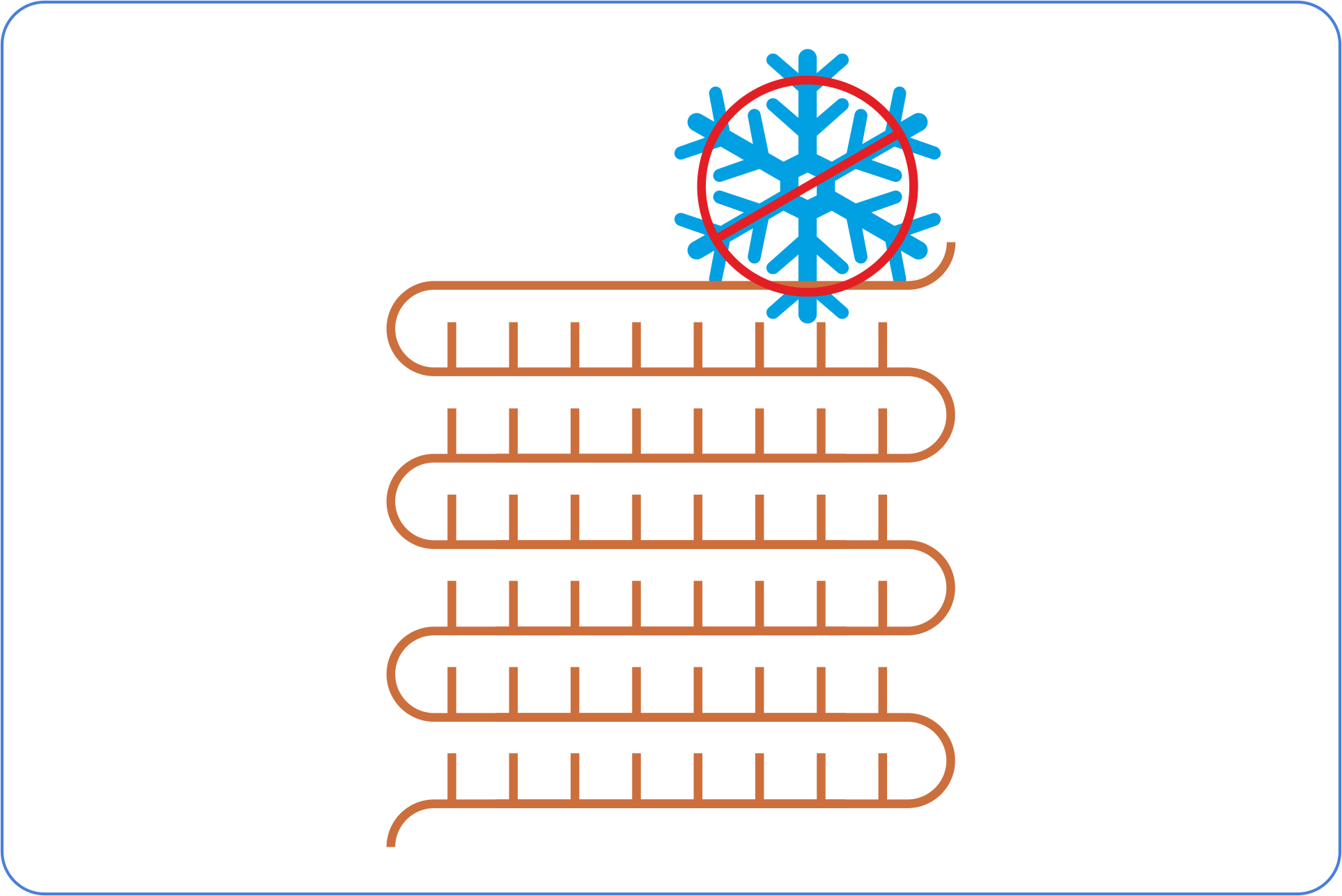

DEFROST
Include a process called defrosting i.e. the process of removing ice build-up from the coil
SILENT AIR
Ensure air-cutting noise reduction with New Design Technology.
TROPICAL DESIGN
AC's are designed to keep you cool and work efficiently up to 460C

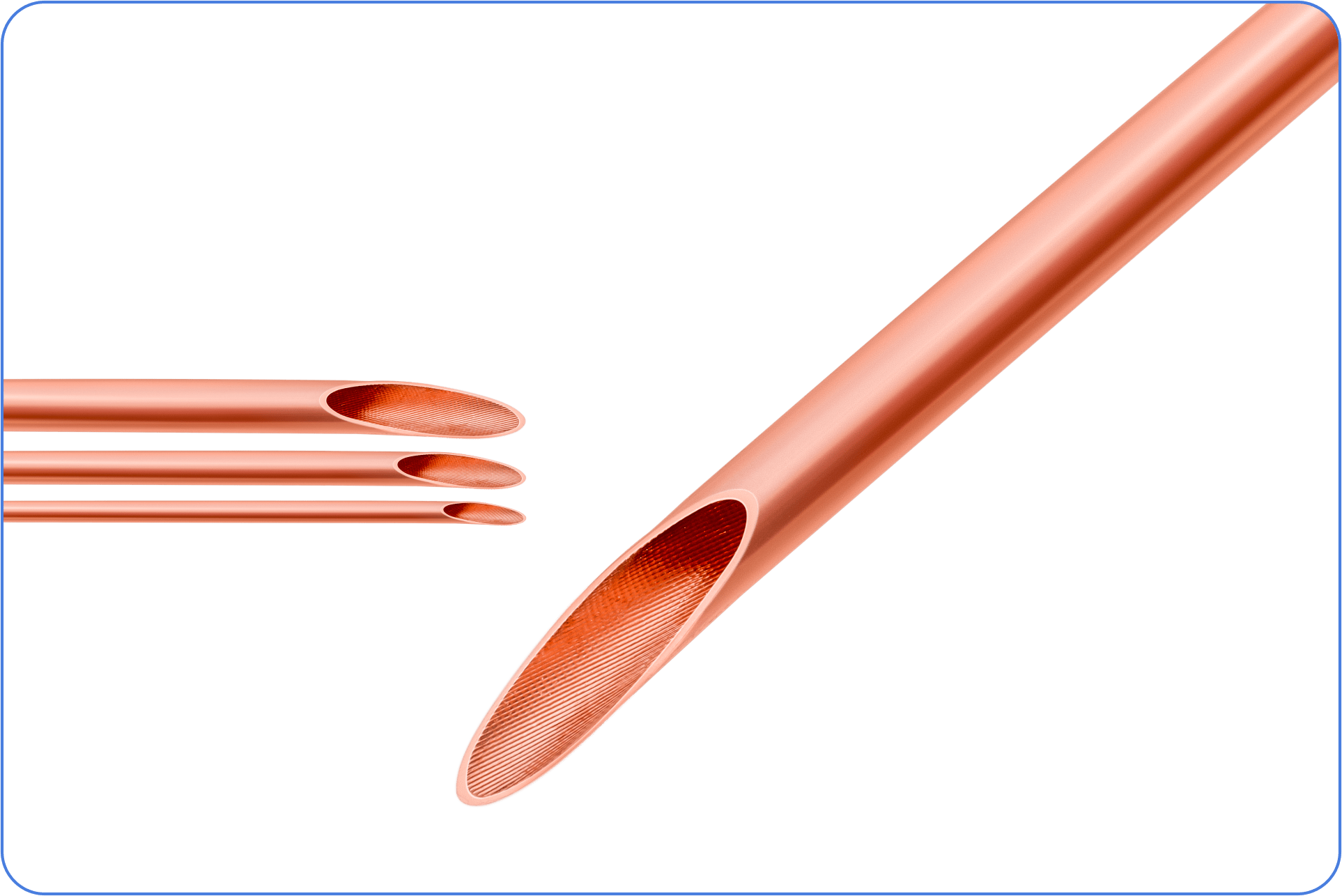

100% INNER GROOVED COPPER TUBES
100% Inner Grooved Copper Ensures faster cooling with its Turbulent Refrigerant Flow that enhances heat transfer rate
GREEN REFRIGERANT
Eco-friendly units equipped with R32 pre-charged refrigerant
